# Journal d'avancement du groupe plastronique.
## Jalons
| Numéro de Jalon | Date | Objectif |
|---|---|---|
| 1 | 14 Mars 2022 (matin) | - Présentation des schémas + BOM <br /> - Commande des composants <br /> - Début des routages |
| 2 | 28 Mars 2022 (au soir) | - Présentation des fichiers gerbers <br /> - Envoi des cartes en fabrication |
| 3 | 11 Avril 2022 | Dernier cours :<br /> - Un prototype monté par groupe <br /> - Rendu du rapport |
| ? | ? | Présentation Rolex |
---
## 21.02.2022
Prise de connaissance du projet à effectuer, lecture du cahier des charges.
Nous avons trouvé les composants moquant pour la carte complète (version étude)
### Travail à effectuer :
Enlever les composants inutile pour notre version. Début de routage.
---
## 28.02.2022
### Travail effectué
- Création du nouveau projet Altium pour le modèle plastronique
- Intégration de la librairie des composants existants au projet
- Composants de remplacements trouvé (régulateurs de tension, diode schottky)
- Détermination des résistances pour avoir les trnsions voulues
- Travail sur les schémas, majorité des points de test enlevés
- Suppression de la ligne d'alimentation à 3.6V
- Changement de source d'alimentation de l'USB au secteur
- Suppression du mode faible puissance (amplification à 20dBm)
- Suppression de la partie LCD
### Objectifs pour la semaine prochaine
- Intégré complétement les nouveaux régulateurs de tension au schéma
- Suppression boutons poussoirs de navigation
- Intégration du module WIFI/Bluetooth au schéma
- Vérification des éléments restant à supprimer
- Ajout des empreintes des composants remplaçés
---
## 07.03.2022
### Travail effectué
- Suppression boutons poussoirs de navigation
- Remplacement du régulateur 5V par un permettant 2A au lieu de 1A
- Remplacements des composants de la semaine dernière effectués
- Remplacement du bridge UART et suppression des diodes TX et RX
- Lecture de la datasheet du module WIFI/Bluetooth et réflexion sur le branchement
### Objectifs pour la semaine prochaine
- Intégration du module WIFI/Bluetooth
- Validation des schémas
- Début routage
---
## 14.03.2022
### Travail effectué
- Intégration du module WIFI/Bluetooth dans le schéma
- Remplacement du connecteur JTAG par un Tag Connect
- Validation des schémas
- Importation d'une grande partie des modèles 3D
- Visite de Rolex
### Objectifs pour la semaine prochaine
- Début routage
- Réflexion sur la procédure à effectuer pour la plastronique
---
## 21.03.2022
### Travail effectué
- Détermination des différentes zones sur le PCB
- Réflexion sur les couches à utiliser et comment effectuer le routage du PCB
- Réflexion sur la procédure pour réaliser la version plastronique
- Routage de la partie alimentation
### Objectifs pour la semaine prochaine
- Routage du module WIFI /Bluetooth et partie centrale
---
## 28.03.2022
### Travail effectué
- Nouvelle validation des schémas
- Etablissement des règles Alitum : taille des pistes et des vias, largeur entre deux pistes
- Trouvaille des modèles 3D manquants en prenant des similaires lorsque non disponible
- Routage du module WIFI /Bluetooth et partie centrale
### Objectifs pour la semaine prochaine
- Routage partie RF
---
## 04.04.2022
### Travail effectué
- Début de routage de la partie RF
- Trouvaille des modèles 3D manquants en prenant des similaires lorsque non disponible.
### Objectifs pour la semaine prochaine
- Fin du routage de la partie RF
---
## 11.04.2022
### Travail effectué
- Placement général des silks
- Fin de routage de la partie RF
- Plan de masse pour l'impédance des paires différentielles
### Objectifs pour la semaine prochaine
- Routage du module WIFI /Bluetooth et partie centrale
---
## 20.04.2022
### Travail effectué
- Ajout des modèles 3D trouvés précédemment
- Modification aux alentours du module bluetooth selon le guide réalisé par le groupe de Tanguy
- Placement des trous de fixation
- Résolution de toutes les erreurs
- Plan de masse pour l'impédance de 50 Ohm de la feuille coupling
- Suppression de presque tous les angles droits
### Objectifs pour la semaine prochaine
- Rendre propre le routage
- Finir plan de masse 50 Ohm
---
## 24.04.2022
### Travail effectué
- Routage propre: Ajustement de vias, jolies lignes
- Plan de masse 50 Ohm pour la feuille ext_ampli
- Ajout d'un silk de description du projet
- Fin de la version PCB
ws_altium_plastronique/original_pcb_rules.RUL 0 → 100644
+ 37
− 0
View file @ d6ca765b
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=Clearance|NETSCOPE=DifferentNets|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=Clearance|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=ONYJHPKW|DEFINEDBYLOGICALDOCUMENT=FALSE|GAP=5.9055mil|GENERICCLEARANCE=5.9055mil|IGNOREPADTOPADCLEARANCEINFOOTPRINT=FALSE|OBJECTCLEARANCES=
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=Width|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=InNet('5V') Or InNet('3V3') Or InNet('In Battery +')|SCOPE2EXPRESSION=All|NAME=Alim|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=JVROYINV|DEFINEDBYLOGICALDOCUMENT=FALSE|MAXLIMIT=23.622mil|MINLIMIT=15.748mil|PREFEREDWIDTH=23.622mil|MIDLAYER1_MINWIDTH=10mil|MIDLAYER1_MAXWIDTH=10mil|MIDLAYER1_PREFWIDTH=10mil|MIDLAYER2_MINWIDTH=10mil|MIDLAYER2_MAXWIDTH=10mil|MIDLAYER2_PREFWIDTH=10mil|MIDLAYER3_MINWIDTH=10mil|MIDLAYER3_MAXWIDTH=10mil|MIDLAYER3_PREFWIDTH=10mil|MIDLAYER4_MINWIDTH=10mil|MIDLAYER4_MAXWIDTH=10mil|MIDLAYER4_PREFWIDTH=10mil|MIDLAYER5_MINWIDTH=10mil|MIDLAYER5_MAXWIDTH=10mil|MIDLAYER5_PREFWIDTH=10mil|MIDLAYER6_MINWIDTH=10mil|MIDLAYER6_MAXWIDTH=10mil|MIDLAYER6_PREFWIDTH=10mil|MIDLAYER7_MINWIDTH=10mil|MIDLAYER7_MAXWIDTH=10mil|MIDLAYER7_PREFWIDTH=10mil|MIDLAYER8_MINWIDTH=10mil|MIDLAYER8_MAXWIDTH=10mil|MIDLAYER8_PREFWIDTH=10mil|MIDLAYER9_MINWIDTH=10mil|MIDLAYER9_MAXWIDTH=10mil|MIDLAYER9_PREFWIDTH=10mil|MIDLAYER10_MINWIDTH=10mil|MIDLAYER10_MAXWIDTH=10mil|MIDLAYER10_PREFWIDTH=10mil|MIDLAYER11_MINWIDTH=10mil|MIDLAYER11_MAXWIDTH=10mil|MIDLAYER11_PREFWIDTH=10mil|MIDLAYER12_MINWIDTH=10mil|MIDLAYER12_MAXWIDTH=10mil|MIDLAYER12_PREFWIDTH=10mil|MIDLAYER13_MINWIDTH=10mil|MIDLAYER13_MAXWIDTH=10mil|MIDLAYER13_PREFWIDTH=10mil|MIDLAYER14_MINWIDTH=10mil|MIDLAYER14_MAXWIDTH=10mil|MIDLAYER14_PREFWIDTH=10mil|MIDLAYER15_MINWIDTH=10mil|MIDLAYER15_MAXWIDTH=10mil|MIDLAYER15_PREFWIDTH=10mil|MIDLAYER16_MINWIDTH=10mil|MIDLAYER16_MAXWIDTH=10mil|MIDLAYER16_PREFWIDTH=10mil|MIDLAYER17_MINWIDTH=10mil|MIDLAYER17_MAXWIDTH=10mil|MIDLAYER17_PREFWIDTH=10mil|MIDLAYER18_MINWIDTH=10mil|MIDLAYER18_MAXWIDTH=10mil|MIDLAYER18_PREFWIDTH=10mil|MIDLAYER19_MINWIDTH=10mil|MIDLAYER19_MAXWIDTH=10mil|MIDLAYER19_PREFWIDTH=10mil|MIDLAYER20_MINWIDTH=10mil|MIDLAYER20_MAXWIDTH=10mil|MIDLAYER20_PREFWIDTH=10mil|MIDLAYER21_MINWIDTH=10mil|MIDLAYER21_MAXWIDTH=10mil|MIDLAYER21_PREFWIDTH=10mil|MIDLAYER22_MINWIDTH=10mil|MIDLAYER22_MAXWIDTH=10mil|MIDLAYER22_PREFWIDTH=10mil|MIDLAYER23_MINWIDTH=10mil|MIDLAYER23_MAXWIDTH=10mil|MIDLAYER23_PREFWIDTH=10mil|MIDLAYER24_MINWIDTH=10mil|MIDLAYER24_MAXWIDTH=10mil|MIDLAYER24_PREFWIDTH=10mil|MIDLAYER25_MINWIDTH=10mil|MIDLAYER25_MAXWIDTH=10mil|MIDLAYER25_PREFWIDTH=10mil|MIDLAYER26_MINWIDTH=10mil|MIDLAYER26_MAXWIDTH=10mil|MIDLAYER26_PREFWIDTH=10mil|MIDLAYER27_MINWIDTH=10mil|MIDLAYER27_MAXWIDTH=10mil|MIDLAYER27_PREFWIDTH=10mil|MIDLAYER28_MINWIDTH=10mil|MIDLAYER28_MAXWIDTH=10mil|MIDLAYER28_PREFWIDTH=10mil|MIDLAYER29_MINWIDTH=10mil|MIDLAYER29_MAXWIDTH=10mil|MIDLAYER29_PREFWIDTH=10mil|MIDLAYER30_MINWIDTH=10mil|MIDLAYER30_MAXWIDTH=10mil|MIDLAYER30_PREFWIDTH=10mil|MINIMP=50.000000|MAXIMP=50.000000|FAVIMP=50.000000
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=Width|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=Width|ENABLED=TRUE|PRIORITY=2|COMMENT= |UNIQUEID=CJTWMMXE|DEFINEDBYLOGICALDOCUMENT=FALSE|MAXLIMIT=78.7402mil|MINLIMIT=5.9055mil|PREFEREDWIDTH=5.9055mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=PlaneConnect|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=PlaneConnect|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=SJRKFSDL|DEFINEDBYLOGICALDOCUMENT=FALSE|PLANECONNECTSTYLE=Relief|RELIEFEXPANSION=20mil|RELIEFENTRIES=4|RELIEFCONDUCTORWIDTH=10mil|RELIEFAIRGAP=10mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=RoutingTopology|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=RoutingTopology|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=AEVIPDCU|DEFINEDBYLOGICALDOCUMENT=FALSE|TOPOLOGY=Shortest
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=RoutingPriority|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=RoutingPriority|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=THGBEPNK|DEFINEDBYLOGICALDOCUMENT=FALSE|ROUTINGPRIORITY=0
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=RoutingLayers|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=RoutingLayers|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=HYXCNVEJ|DEFINEDBYLOGICALDOCUMENT=FALSE|TOP LAYER_V5=TRUE|MID LAYER 1_V5=TRUE|MID LAYER 2_V5=TRUE|MID LAYER 3_V5=TRUE|MID LAYER 4_V5=TRUE|MID LAYER 5_V5=TRUE|MID LAYER 6_V5=TRUE|MID LAYER 7_V5=TRUE|MID LAYER 8_V5=TRUE|MID LAYER 9_V5=TRUE|MID LAYER 10_V5=TRUE|MID LAYER 11_V5=TRUE|MID LAYER 12_V5=TRUE|MID LAYER 13_V5=TRUE|MID LAYER 14_V5=TRUE|MID LAYER 15_V5=TRUE|MID LAYER 16_V5=TRUE|MID LAYER 17_V5=TRUE|MID LAYER 18_V5=TRUE|MID LAYER 19_V5=TRUE|MID LAYER 20_V5=TRUE|MID LAYER 21_V5=TRUE|MID LAYER 22_V5=TRUE|MID LAYER 23_V5=TRUE|MID LAYER 24_V5=TRUE|MID LAYER 25_V5=TRUE|MID LAYER 26_V5=TRUE|MID LAYER 27_V5=TRUE|MID LAYER 28_V5=TRUE|MID LAYER 29_V5=TRUE|MID LAYER 30_V5=TRUE|BOTTOM LAYER_V5=TRUE
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=RoutingCorners|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=RoutingCorners|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=VFWUPRKD|DEFINEDBYLOGICALDOCUMENT=FALSE|CORNERSTYLE=45-Degree|MINSETBACK=100mil|MAXSETBACK=100mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=RoutingVias|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=RoutingVias|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=TXOLUKOD|DEFINEDBYLOGICALDOCUMENT=FALSE|HOLEWIDTH=9.8425mil|WIDTH=23.622mil|VIASTYLE=Through Hole|MINHOLEWIDTH=9.8425mil|MINWIDTH=23.622mil|MAXHOLEWIDTH=137.7953mil|MAXWIDTH=157.4803mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=PlaneClearance|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=PlaneClearance|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=ADKAUBYM|DEFINEDBYLOGICALDOCUMENT=FALSE|CLEARANCE=20mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=SolderMaskExpansion|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=SolderMaskExpansion|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=WQGLRHCY|DEFINEDBYLOGICALDOCUMENT=FALSE|EXPANSION=1.1811mil|ISTENTINGTOP=FALSE
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=PasteMaskExpansion|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=PasteMaskExpansion|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=RRDCHQAQ|DEFINEDBYLOGICALDOCUMENT=FALSE|EXPANSION=0mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=ShortCircuit|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=ShortCircuit|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=HNBPPFBQ|DEFINEDBYLOGICALDOCUMENT=FALSE|ALLOWED=FALSE
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=UnRoutedNet|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=UnRoutedNet|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=WFWCCGKW|DEFINEDBYLOGICALDOCUMENT=FALSE|CHECKBADCONNECTIONS=TRUE
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=MinimumAnnularRing|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=MinimumAnnularRing|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=UCTAQSYK|DEFINEDBYLOGICALDOCUMENT=FALSE|MINIMUMRING=4.9213mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=PolygonConnect|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=PolygonConnect|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=LTVXPXYT|DEFINEDBYLOGICALDOCUMENT=FALSE|THPAD.CONNECTSTYLE=Relief|THPAD.RELIEFCONDUCTORWIDTH=5.9055mil|THPAD.RELIEFENTRIES=4|THPAD.POLYGONRELIEFANGLE=90 Angle|THPAD.AIRGAPWIDTH=5.9055mil|SMDPAD.CONNECTSTYLE=Relief|SMDPAD.RELIEFCONDUCTORWIDTH=5.9055mil|SMDPAD.RELIEFENTRIES=4|SMDPAD.POLYGONRELIEFANGLE=90 Angle|SMDPAD.AIRGAPWIDTH=5.9055mil|VIA.CONNECTSTYLE=Direct|VIA.RELIEFCONDUCTORWIDTH=5.9055mil|VIA.RELIEFENTRIES=4|VIA.POLYGONRELIEFANGLE=90 Angle|VIA.AIRGAPWIDTH=5.9055mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=ComponentClearance|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=ComponentClearance|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=LRLLPPHB|DEFINEDBYLOGICALDOCUMENT=FALSE|GAP=10mil|COLLISIONCHECKMODE=3|VERTICALGAP=10mil|SHOWDISTANCES=FALSE
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=HoleSize|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=HoleSize|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=SKCMWDLY|DEFINEDBYLOGICALDOCUMENT=FALSE|ABSOLUTEVALUES=TRUE|MAXLIMIT=157.4803mil|MINLIMIT=9.8425mil|MAXPERCENT=80.000|MINPERCENT=20.000
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=FabricationTestpoint|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=FabricationTestpoint|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=UVQMYDSI|DEFINEDBYLOGICALDOCUMENT=FALSE|SIDE=3|TESTPOINTUNDERCOMPONENT=TRUE|MINSIZE=40mil|MAXSIZE=100mil|PREFEREDSIZE=60mil|MINHOLESIZE=0mil|MAXHOLESIZE=40mil|PREFEREDHOLESIZE=32mil|TESTPOINTGRID=1mil|ALLOWSIDETOP=TRUE|ALLOWSIDEBOTTOM=TRUE|USEGRID=TRUE|GRIDTOLERANCE=0.01mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=FabricationTestPointUsage|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=FabricationTestPointUsage|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=BSRHNWYW|DEFINEDBYLOGICALDOCUMENT=FALSE|VALID=0|ALLOWMULTIPLE=FALSE
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=LayerPairs|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=LayerPairs|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=SRNMBSJC|DEFINEDBYLOGICALDOCUMENT=FALSE|ENFORCE=TRUE
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=FanoutControl|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=IsBGA|SCOPE2EXPRESSION=All|NAME=Fanout_BGA|ENABLED=TRUE|PRIORITY=1|COMMENT=Fanout_BGA (Default Rule)|UNIQUEID=YNDQMFHP|DEFINEDBYLOGICALDOCUMENT=FALSE|BGADIR=Out|BGAVIAMODE=Centered|FANOUTSTYLE=Auto|FANOUTDIRECTION=Alternating|VIAGRID=1mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=FanoutControl|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=IsLCC|SCOPE2EXPRESSION=All|NAME=Fanout_LCC|ENABLED=TRUE|PRIORITY=2|COMMENT=Fanout_LCC (Default Rule)|UNIQUEID=WIINUGRI|DEFINEDBYLOGICALDOCUMENT=FALSE|BGADIR=Out|BGAVIAMODE=Centered|FANOUTSTYLE=Auto|FANOUTDIRECTION=Alternating|VIAGRID=1mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=FanoutControl|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=IsSOIC|SCOPE2EXPRESSION=All|NAME=Fanout_SOIC|ENABLED=TRUE|PRIORITY=3|COMMENT=Fanout_SOIC (Default Rule)|UNIQUEID=QBPGMVEK|DEFINEDBYLOGICALDOCUMENT=FALSE|BGADIR=Out|BGAVIAMODE=Centered|FANOUTSTYLE=Auto|FANOUTDIRECTION=Alternating|VIAGRID=1mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=FanoutControl|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=(CompPinCount < 5)|SCOPE2EXPRESSION=All|NAME=Fanout_Small|ENABLED=TRUE|PRIORITY=4|COMMENT=Fanout_Small (Default Rule)|UNIQUEID=GBBFEOKS|DEFINEDBYLOGICALDOCUMENT=FALSE|BGADIR=Out|BGAVIAMODE=Centered|FANOUTSTYLE=Auto|FANOUTDIRECTION=OutThenIn|VIAGRID=1mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=FanoutControl|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=Fanout_Default|ENABLED=TRUE|PRIORITY=5|COMMENT=Fanout_Default (Default Rule)|UNIQUEID=NBFRBKMS|DEFINEDBYLOGICALDOCUMENT=FALSE|BGADIR=Out|BGAVIAMODE=Centered|FANOUTSTYLE=Auto|FANOUTDIRECTION=Alternating|VIAGRID=1mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=Height|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=Height|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=EXNKWXYP|DEFINEDBYLOGICALDOCUMENT=FALSE|MINHEIGHT=0mil|MAXHEIGHT=1000mil|PREFHEIGHT=500mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=DiffPairsRouting|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=DiffPairsRouting|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=ECUQBGSV|DEFINEDBYLOGICALDOCUMENT=FALSE|MAXLIMIT=10mil|MINLIMIT=10mil|MOSTFREQGAP=10mil|TOPLAYER_MINWIDTH=15mil|TOPLAYER_MAXWIDTH=15mil|TOPLAYER_PREFWIDTH=15mil|MIDLAYER1_MINWIDTH=15mil|MIDLAYER1_MAXWIDTH=15mil|MIDLAYER1_PREFWIDTH=15mil|MIDLAYER2_MINWIDTH=15mil|MIDLAYER2_MAXWIDTH=15mil|MIDLAYER2_PREFWIDTH=15mil|MIDLAYER3_MINWIDTH=15mil|MIDLAYER3_MAXWIDTH=15mil|MIDLAYER3_PREFWIDTH=15mil|MIDLAYER4_MINWIDTH=15mil|MIDLAYER4_MAXWIDTH=15mil|MIDLAYER4_PREFWIDTH=15mil|MIDLAYER5_MINWIDTH=15mil|MIDLAYER5_MAXWIDTH=15mil|MIDLAYER5_PREFWIDTH=15mil|MIDLAYER6_MINWIDTH=15mil|MIDLAYER6_MAXWIDTH=15mil|MIDLAYER6_PREFWIDTH=15mil|MIDLAYER7_MINWIDTH=15mil|MIDLAYER7_MAXWIDTH=15mil|MIDLAYER7_PREFWIDTH=15mil|MIDLAYER8_MINWIDTH=15mil|MIDLAYER8_MAXWIDTH=15mil|MIDLAYER8_PREFWIDTH=15mil|MIDLAYER9_MINWIDTH=15mil|MIDLAYER9_MAXWIDTH=15mil|MIDLAYER9_PREFWIDTH=15mil|MIDLAYER10_MINWIDTH=15mil|MIDLAYER10_MAXWIDTH=15mil|MIDLAYER10_PREFWIDTH=15mil|MIDLAYER11_MINWIDTH=15mil|MIDLAYER11_MAXWIDTH=15mil|MIDLAYER11_PREFWIDTH=15mil|MIDLAYER12_MINWIDTH=15mil|MIDLAYER12_MAXWIDTH=15mil|MIDLAYER12_PREFWIDTH=15mil|MIDLAYER13_MINWIDTH=15mil|MIDLAYER13_MAXWIDTH=15mil|MIDLAYER13_PREFWIDTH=15mil|MIDLAYER14_MINWIDTH=15mil|MIDLAYER14_MAXWIDTH=15mil|MIDLAYER14_PREFWIDTH=15mil|MIDLAYER15_MINWIDTH=15mil|MIDLAYER15_MAXWIDTH=15mil|MIDLAYER15_PREFWIDTH=15mil|MIDLAYER16_MINWIDTH=15mil|MIDLAYER16_MAXWIDTH=15mil|MIDLAYER16_PREFWIDTH=15mil|MIDLAYER17_MINWIDTH=15mil|MIDLAYER17_MAXWIDTH=15mil|MIDLAYER17_PREFWIDTH=15mil|MIDLAYER18_MINWIDTH=15mil|MIDLAYER18_MAXWIDTH=15mil|MIDLAYER18_PREFWIDTH=15mil|MIDLAYER19_MINWIDTH=15mil|MIDLAYER19_MAXWIDTH=15mil|MIDLAYER19_PREFWIDTH=15mil|MIDLAYER20_MINWIDTH=15mil|MIDLAYER20_MAXWIDTH=15mil|MIDLAYER20_PREFWIDTH=15mil|MIDLAYER21_MINWIDTH=15mil|MIDLAYER21_MAXWIDTH=15mil|MIDLAYER21_PREFWIDTH=15mil|MIDLAYER22_MINWIDTH=15mil|MIDLAYER22_MAXWIDTH=15mil|MIDLAYER22_PREFWIDTH=15mil|MIDLAYER23_MINWIDTH=15mil|MIDLAYER23_MAXWIDTH=15mil|MIDLAYER23_PREFWIDTH=15mil|MIDLAYER24_MINWIDTH=15mil|MIDLAYER24_MAXWIDTH=15mil|MIDLAYER24_PREFWIDTH=15mil|MIDLAYER25_MINWIDTH=15mil|MIDLAYER25_MAXWIDTH=15mil|MIDLAYER25_PREFWIDTH=15mil|MIDLAYER26_MINWIDTH=15mil|MIDLAYER26_MAXWIDTH=15mil|MIDLAYER26_PREFWIDTH=15mil|MIDLAYER27_MINWIDTH=15mil|MIDLAYER27_MAXWIDTH=15mil|MIDLAYER27_PREFWIDTH=15mil|MIDLAYER28_MINWIDTH=15mil|MIDLAYER28_MAXWIDTH=15mil|MIDLAYER28_PREFWIDTH=15mil|MIDLAYER29_MINWIDTH=15mil|MIDLAYER29_MAXWIDTH=15mil|MIDLAYER29_PREFWIDTH=15mil|MIDLAYER30_MINWIDTH=15mil|MIDLAYER30_MAXWIDTH=15mil|MIDLAYER30_PREFWIDTH=15mil|BOTTOMLAYER_MINWIDTH=15mil|BOTTOMLAYER_MAXWIDTH=15mil|BOTTOMLAYER_PREFWIDTH=15mil|MAXUNCOUPLEDLENGTH=500mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=HoleToHoleClearance|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=HoleToHoleClearance|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=EJPNAXLW|DEFINEDBYLOGICALDOCUMENT=FALSE|GAP=9.8425mil|ALLOWSTACKEDMICROVIAS=TRUE
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=MinimumSolderMaskSliver|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=MinimumSolderMaskSliver|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=WAHWUGMV|DEFINEDBYLOGICALDOCUMENT=FALSE|MINSOLDERMASKWIDTH=2.9528mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=SilkToSolderMaskClearance|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=IsPad|SCOPE2EXPRESSION=All|NAME=SilkToSolderMaskClearance|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=MDLQMDAU|DEFINEDBYLOGICALDOCUMENT=FALSE|MINSILKSCREENTOMASKGAP=7.874mil|CLEARANCETOEXPOSEDCOPPER=TRUE
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=SilkToSilkClearance|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=SilkToSilkClearance|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=QYXRIVXH|DEFINEDBYLOGICALDOCUMENT=FALSE|SILKTOSILKCLEARANCE=7.874mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=NetAntennae|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=NetAntennae|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=ONELAABM|DEFINEDBYLOGICALDOCUMENT=FALSE|NETANTENNAETOLERANCE=0mil
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=AssemblyTestpoint|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=AssemblyTestpoint|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=HDAFIPNT|DEFINEDBYLOGICALDOCUMENT=FALSE|TESTPOINTUNDERCOMPONENT=TRUE|MINSIZE=40mil|MAXSIZE=100mil|PREFEREDSIZE=60mil|MINHOLESIZE=0mil|MAXHOLESIZE=40mil|PREFEREDHOLESIZE=32mil|TESTPOINTGRID=1mil|USEGRID=TRUE|GRIDTOLERANCE=0.01mil|ALLOWSIDETOP=TRUE|ALLOWSIDEBOTTOM=TRUE
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=AssemblyTestPointUsage|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=AssemblyTestPointUsage|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=KDXNIGWI|DEFINEDBYLOGICALDOCUMENT=FALSE
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=UnpouredPolygon|NETSCOPE=AnyNet|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=UnpouredPolygon|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=XIITLKRB|DEFINEDBYLOGICALDOCUMENT=FALSE
SELECTION=FALSE|LAYER=TOP|LOCKED=FALSE|POLYGONOUTLINE=FALSE|USERROUTED=TRUE|KEEPOUT=FALSE|UNIONINDEX=0|RULEKIND=BoardOutlineClearance|NETSCOPE=DifferentNets|LAYERKIND=SameLayer|SCOPE1EXPRESSION=All|SCOPE2EXPRESSION=All|NAME=BoardOutlineClearance|ENABLED=TRUE|PRIORITY=1|COMMENT= |UNIQUEID=GGTJJPNI|DEFINEDBYLOGICALDOCUMENT=FALSE|GAP=10mil|GENERICCLEARANCE=10mil|IGNOREPADTOPADCLEARANCEINFOOTPRINT=FALSE|OBJECTCLEARANCES=ClearanceObj_Arc-ClearanceObj_SplitContinuation:0;ClearanceObj_Track-ClearanceObj_SplitContinuation:0;ClearanceObj_SMDPad-ClearanceObj_SplitContinuation:0;ClearanceObj_THPad-ClearanceObj_SplitContinuation:0;ClearanceObj_Via-ClearanceObj_SplitContinuation:0;ClearanceObj_Fill-ClearanceObj_SplitContinuation:0;ClearanceObj_Poly-ClearanceObj_SplitContinuation:0;ClearanceObj_Region-ClearanceObj_SplitContinuation:0;ClearanceObj_Text-ClearanceObj_SplitContinuation:0
ws_altium_plastronique/plastronic_on_pcb_rules.RUL 0 → 100644
+ 87
− 0
View file @ d6ca765b
This diff is collapsed.

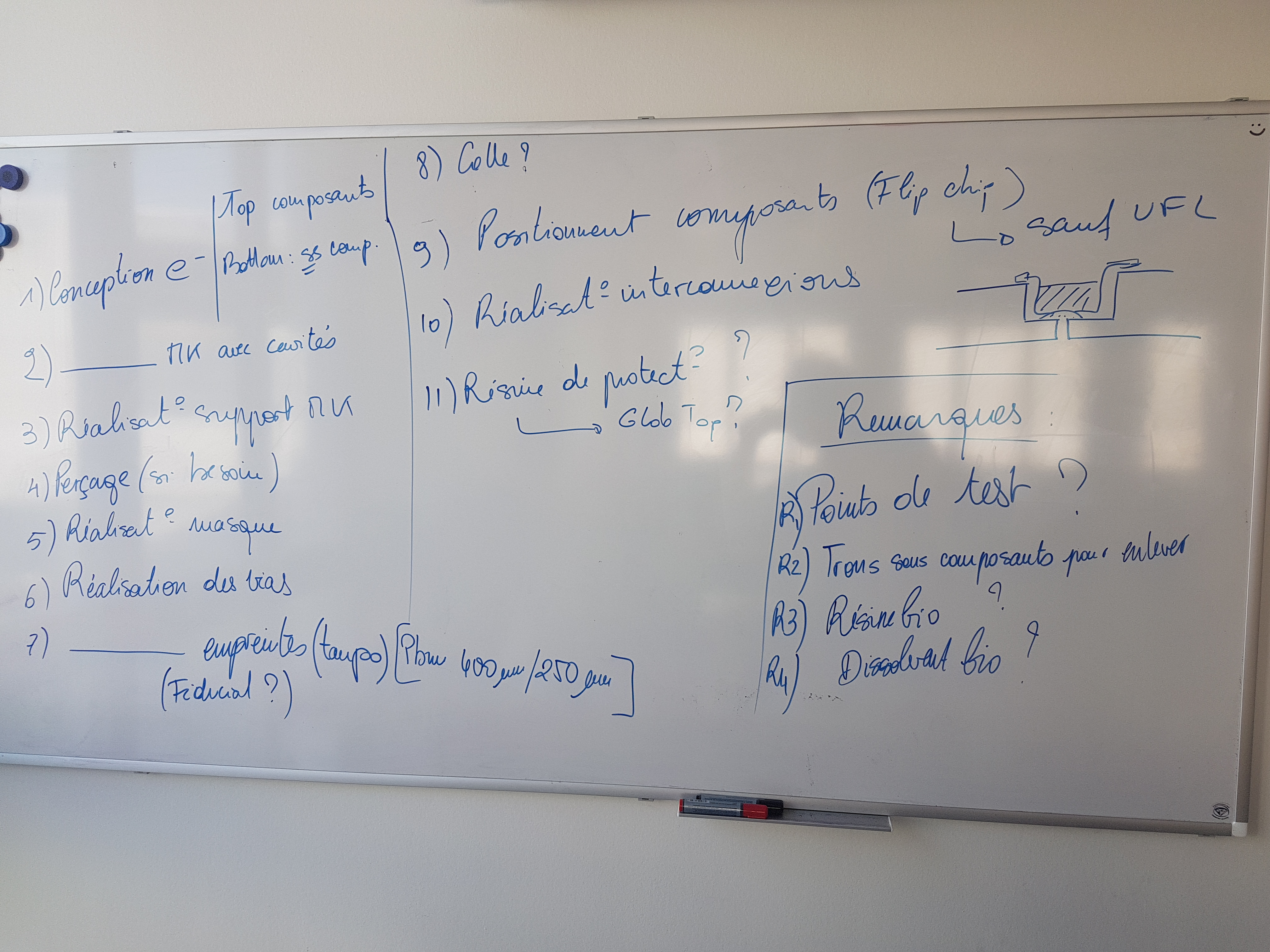

ws_altium_plastronique/tableau_blanc_idée_plastro.jpg 0 → 100644
